24v/48v hybrid solar pure sine wave inverter power home use air conditioner inverter 290*125*430mm/350*175*550mm

1 Unit
MOQ
$142.00(1 - 49 Units) $140.00(50 - 99 Units) $138.00(>=100 Units)
Precio
24v/48v hybrid solar pure sine wave inverter power home use air conditioner inverter 290*125*430mm/350*175*550mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: NKW-500W
Type: DC/AC Inverters
Output Type: Single
Output Frequency: 50/60Hz±1%( Inverter mode)
Size: 290*125*430mm/350*175*550mm
Certificate: ce
Product name: NKW Inverter
Voltage range: 110Vac/220Vac;±5%( Inverter mode)
Output wave: Pure sine wave
Change time: <10ms(Typical load)
Efficiency: >85%(80% Resistive load)
overcharge: >85%(80% Resistive load)
Operating ambient temperature: 0-40℃
Storage ambient temperature: -15 - +50℃
Operating/Storage ambient: 0-90% No condensation
Battery type: U0-U7 can be set
Información básica
Certificación: ce
Model Number: NKW-500W
Pago y Envío Términos
Packaging Details: single package size and gross weight are examples,each battery has its details.
Supply Ability: 9999 Unit/Units per Month
Descripción de producto





INVERTER PARAMETERS

Green environmental protection and low carbon life
Type:NKW 0.3-1KW 1-6KW
Power rating 300W 500W 1500W 2500W 5000W
700W 1000W 2000W 4000W 6000W
Battery Rated voltage 12VD/24VDC  12/24
/48VDC		 24VDC/48VDC 48/96
Vdc
Charge current 60A (C1-C6 Can be set) 50A (C0-C6 Can be set)
Battery type U0-U7 can be set
Input Voltage range 73-138Vac/145-275Vac 85-138Vac/170-275Vac
Frequency 45-65Hz
Output Voltage range 110Vac/220Vac;±5%( Inverter mode)
Frequency 50/60Hz±1%( Inverter mode)
Output wave Pure sine wave
Change time <10ms( typical load)
Efficiency >85%(80% Resistance load)
Overload 110-120%/30S;>160%/300ms
Protection Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
Solar Controller        Battery voltage 12(Vdc); *A(Number of battery cells/12V)
 PV max Voltage ≤25(Vdc); *A(Number of battery cells/12V)
 Charge Voltage  10-25(Vdc); *A(Number of battery cells/12V)
 Rated charge current 60A(Max)
Max Power  720(W)*; *A(Number of battery cells/12V)
 Overcharge Voltage 14.2(Vdc); *A(Number of battery cells/12V)
 Overcharge recovery voltage 14(Vdc); *A(Number of battery cells/12V)
Floating charge voltage 13.6(Vdc); *A(Number of battery cells/12V)
Operating ambient temperature12 0-40℃
Storage ambient temperature -15 - +50℃
Operating/Storage ambient 0-90% No condensation
Machine Size: L*W*H 290*125*430mm 350*175*550mm
Package size: L*W*H 365*205*473mm 445*245*650mm

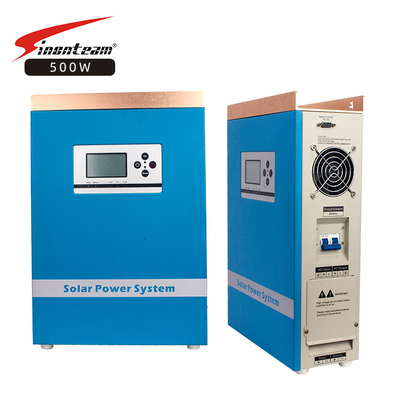

Product display



INVERTER DETAILS

Green environmental protection and low carbon life





FEATURES

1.Double CPU intelligent control technology, performance excellence.

2.The power mode / energy saving mode / battery mode can be set up,
Flexible application.

3.Smart fan control, safe and reliable.

4.The pure sine wave output, can adapt to various types of load.

5.Wide input voltage range,high-precision output alltomatic voltage function.

6. The LCD real-time display device parameters, running status at a glance.

7.The output overload, short circuit protection, automatic  protection  and   alarm.

8.The intelligent solar controller, overcharge,  overdischarge  protection, current limiting charging, multiple protection.

9.Automatic operation of the inverter, the use of the process does  not require human value.



Product category





PRODUCT CATEGORY

Green environmental protection and low carbon life



Company Information



GLOBAL CUSTOMER

Our products are hot sold all over the world!







FAQ





FAQ

Our products are hot sold all over the world!



Q1:What products do you marjor in?

GEL battery, AGM bettery.

Q2:What is function?

The power storage capacity is strong, the flame-retardant is small, the  number of cycles is large, the size is large, various systems are convenient to be installed,etc

Q3:What certification do you have?

ROSH,CE,ISO,MSDS,TLC,etc

Q4:What price is it?

Different type,different price,please contact us directly.

Q5:What devices can these batteries be used in?

UPS,EPS,solar or wind system,telecom system,computer,emergency lamp,street light,expressway devices.etc.

Q6:When will you arrive at the port?

The port time is accounted for according to the actual situation.

Q7:Are there any other products available?
     We also have UPS,inverters, solar panels and battery cabinets matching           battery to sale.
