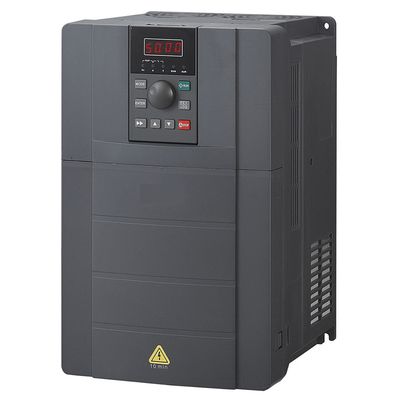

Solar Water Pumping System Single Phase 220V 7.5KW 10HP Drive 7500W Solar Pump Inverter Solar Water Pumping System Used For Pumps

1 piece
MOQ
$239.00(1 - 19 pieces) $230.00(20 - 49 pieces) $221.00(>=50 pieces)
Precio
Solar Water Pumping System Single Phase 220V 7.5KW 10HP Drive 7500W Solar Pump Inverter Solar Water Pumping System Used For Pumps
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: GS500-7.5G-2SB
Output Current: 32A
Output Frequency: 0-300HZ
Output Type: 220V~240V
Certificate: CE / ISO
Warranty: 2Years
Application: Solar Water Pumping System
Product name: Solar Pump Inverter 7.5kw
MPPT( maximum power point tracking): 99% High Efficiency
Input: 100-450V DC
Protection: IP20 / IP54 / IP65
Control mode: Variable Frequecny Drive
Display: LED
Protection Function: Over-current Protection.overload Protection
Overload Capacity: 150%- 60s
Function: DC/AC Mixed Input
Información básica
Certificación: CE / ISO
Model Number: GS500-7.5G-2SB
Pago y Envío Términos
Packaging Details: Carton
Descripción de producto
LK-Solar Single Phase 220V 7.5KW 10HP Solar Water Pump Drive 7500W solar pump inverter used for pumps
Products Description
LK-Solar Solar Pump Inverter
Transfer the solar DC to AC, directly drive the water pump, with the functions of MPPT, water level control, AC/DC hybrid input, fully automatic operation, etc.
Techniacl Features
♦ MPPT accuracy is as high as 99%, making full use of solar energy.
 ♦Automatic shutdown and restart, fully automatic control (built-in water level and light sensor).
 ♦ AC/DC Hybrid input.
GS500 Specifications
Model Definition
For more model information, please click here:

GS500 Series Model
GS500 Series
Model No.
AC input
voltage（V）
MPPT voltage
range (Vmp)
Output
power (KW)
Input
current (A)
Output
current  (A)
GS500-0.75G-2SB


Single phase 220~240V


200~400V DC
0.75
8.2
4
GS500-1.5G-2SB
1.5
14
7
GS500-2.2G-2SB
2.2
23
10
GS500-4.0G-2SB
4
29.4
17
GS500-0.75G/1.5P-4TB

















3 Phase
380~480V

















350~800V DC
0.75
3.4
2.1
GS500-1.5G/2.2P-4TB
1.5
5
3.8
GS500-2.2G/3.0P-4TB
2.2
5.8
5.1
GS500-4.0G/5.5P-4TB
4.0
10.5
9
GS500-5.5G/7.5P-4TB
5.5
14.6
13
GS500-7.5G/11P-4TB
7.5
20.5
17
GS500-11G/15P-4TB
11
26
25
GS500-15G/18P-4TB
15
35
32
GS500-18G/22P-4TB
18.5
38.5
37
GS500-22G/30P-4TB
22
46.5
45
GS500-30G/37P-4TB
30
62
60
GS500-37G/45P-4TB
37
76
75
GS500-45G/55P-4T
45
92
91
GS500-55G/75P-4T
55
113
112
GS500-75G/90P-4T
75
157
150
GS500-90G/110P-4T
90
180
176
GS500-110G/132P-4T
110
214
210
GS500-132G/160P-4T
132
256
253
GS500-160G/185P-4T
160
307
304
GS500-185G/200P-4T
185
326
350
GS500-200G/220P-4T
200
385
377
GS500-220G/250P-4T
220
430
426
System Introduction

LK-Solar solar water pump inverter Working principle


Solar Pump System uses an inverter to convert solar direct current into alternating current, and automatically drives the water pump to supply water. It is widely used for agricultural irrigation, irrigation station reconstruction, household water supply and desert greening in areas with insufficient power.

1. LK-Solar GS500 series solar pump inverters are applicable for various motors like IM, PMSM, BLDC etc.
2. Use for single phase 110V/220V and three phase 220V/380V pumps, power range:0.75KW~220KW.
Product Applications
More Products:
https://lk-solar.en.alibaba.com/
Company Profile


Shenzhen LK-Solar New Energy Technology Co., Ltd.

LK-Solar is a high-tech industry company in Shenzhen, dedicated to the solar water pump system industry, providing solar pump inverters, solar water pumps, and a complete set of solar water pump system solution design services.
Certifications
FAQ
Q 1: How long is your lead time? A: ＜20pcs, delivery within 3 days; 20 - 100pcs, delivery within 7 days; ＞100pcs, 10-15 days.

Q 2: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.

Q 3: What is our advantage ? A: Professional technical research and development team, rapid production capacity, system scheme design, good after-sales service.

Q 4: What is your terms of payment ? A:We accept TT, Western Union, Visa Credit Cards.

Q 5. Is there any discount ? A. The discount will depend on the quanlity you purchase.

Q 6.Could LK-Solar provide technical support? A.We have a professional technical team and R&D team to provide customers with technical support at any time.
If you have more questions, please click here.
