Inicio /Productos/Inversor de potencia automático/Sunways mppt 5KW three phase hybrid power inverter 5000W solar hybrid inverter 550*410*175mm

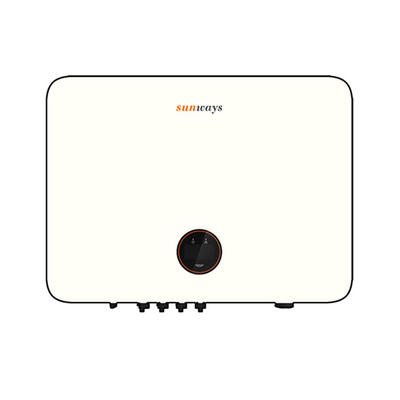

Sunways mppt 5KW three phase hybrid power inverter 5000W solar hybrid inverter 550*410*175mm

1 Set
MOQ
$1,540.00(1 - 23 sets) $1,407.00(24 - 95 sets) $1,340.00(>=96 sets)
Precio
Sunways mppt 5KW three phase hybrid power inverter 5000W solar hybrid inverter 550*410*175mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: STH-5KTL-HT
Input Voltage: Max.1000V
Output Voltage: 3/N/PE, 230V/400V
Output Current: 8.3A
Output Frequency: 50/60HZ
Output Type: DUAL
Size: 550*410*175mm
Type: DC/AC Inverters
Inverter Efficiency: 98.2%
Certificate: ISO,CE, CQC, SAA
Warranty: 5 Years
Weight: 28kg
Product name: 5KW hybrid solar power inverter
Inverter type: hybrid inverter
Output waveform: Pure Sine Wave Output Inverter
Protection Level: IP65
Frequency: 50 HZ 60 HZ
MPPT efficiency: 99.99%
Operating Temperature: -30~60
MPPT Voltage Range: 150-850V
Mppt solar charge controller: available
Protection: Overload, short-circuit
Información básica
Certificación: ISO,CE, CQC, SAA
Model Number: STH-5KTL-HT
Pago y Envío Términos
Packaging Details: carton box , wooden box and wooden pallet
Descripción de producto
Sunways three phase mppt 5KW hybrid solar power inverter 5000W solar hybrid inverter
Product Description
Product Paramenters
NOTICE: Please check the above certificates for each model. If you have special requirements, contact us freely.
Our Design
Our Monitoring
Related Products
Project
Product packaging
Certifications
Company Profile
1. Sunways Origination
Sunways founded in Konstanz Germany in 1993, which focused on the development, manufacturing, sales, and service of high-quality professional photovoltaic inverters.

We has the existing STS 1~6kW residential series, STT 6~25kW small commercial series, STT 50~75kW industry series, and relative monitoring devices and portal, and the under-development STT 80~125kW ground PV-connected power station series and STH 5~12kW high-voltage hybrid series.
2.Our R&D Team
Sunways treat product quality as its life and technical innovation as its driving force. Developed a professional experienced, leading high-level, strong independent innovation capability R&D team. Sunways has about 50 professional R&D employees which have more than 10 years PV industry experience, and engaged with many scientific research institutions such as ISC Konstanz, Fraunhofer ISE, Konstanz University, Zhejiang University, and Solarvalley Mitteldeutschland, etc.
3.Production Capacity and Scale
Sunways has 6 hectares of land in Cixi, Zhejiang with a factory area about 4000 square meters. and now has introduced three automatic production lines. Our monthly production capacity is up to 10,000 sets.

In the meantime, our company has made a strategic plan to double its annual production capacity in three years, and by the year 2022, our production capacity will reach up to 20,000 sets in one month and this will greatly improve our customers’ confidence to us.
4.Quality Management
Sunways treat product quality as its life, from supplier, incoming quality, production to finished items inspection. By the way we also have most advanced testing laboratory to carry out a series of rigorous tests on batch products, and batch sampling the tracking the quality of finished products.
All of products have been certified by TUV and CQC ...professional test. Such as VDE0126-1-1(Germany), AS4777(Australia), RD1699(Spain), IEC61727, IEC60068, IEC61683(India), NBR16149(Brazil), etc.
5.Strategic Partners
Sunways treat product quality as its life, the high-quality components guaranteed the quality and reliability of our products. The raw materials such as electronic components, mechanism materials, and other auxiliary materials are 100% supplied by world-renowned brands such as Panasonic, Infineon, Texas Instruments, SiTime, etc.
Inductor/Capacitor：EPCOS, Nichicon, NCC, KEMET, Panasonic Connector/Switch：Santon, Wieland, OMRON, ZETTLER, MC4, Panasonic IC：SiTime. Texas Instruments，AVAGO, ON Semiconductor, Infineon, VAC, FAIRCHILD

FAQ
1. Q: Can I have sample before formal order?
A: Sure, it will be warmly welcomed.

2. Q: What's the warranty:
A: -Solar inverter: 5 years standard warranty
-External devices such as WiFi, GPRS, CT, Data logger and Meter come standard with a 2 years warranty

3. Q: What's the payment term?
A: Usually we accept T/T

4. Q: OEM is available?
A: Yes, OEM is welcomed.
